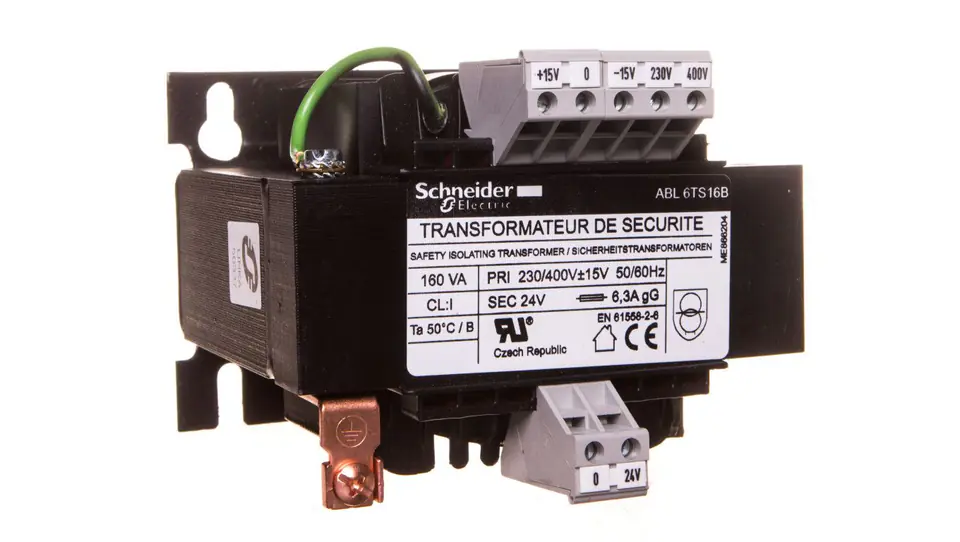

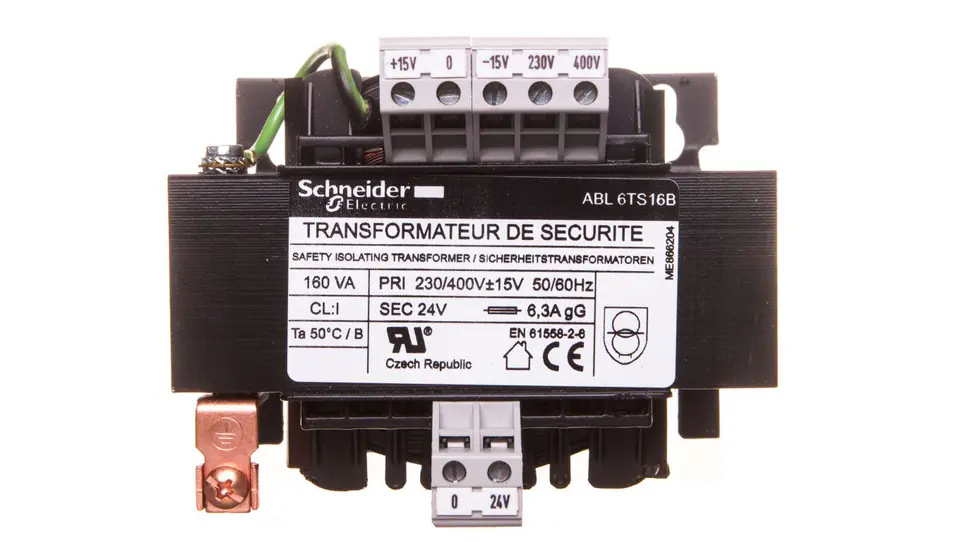

1-phase transformer 160VA 230 400)V/24V ABL6TS16
This product is not available
- Availability:
- expected delivery
- Brand:
- Schneider
- Product code:
- ABL6TS16B / 3389110585841
Share this product:
Specification
| Degree of protection (ip): | IP20 |
|---|---|
| Ean: | 3389110585841 |
| Insulation material class according to iec 85: | B |
| Made as a safety transformer: | Yes |
| Made as a separation transformer: | No |
| Primary voltage 1 from/to [v]: | 230 |
| Primary voltage 1 from/to [v] from: | 207 |
| Primary voltage 1 from/to [v] to: | 253 |
| Primary voltage 2 from/to [v]: | 400 |
| Primary voltage 2 from/to [v] from: | 360 |
| Primary voltage 2 from/to [v] to: | 440 |
| Rated apparent power [va]: | 160 |
| Relative short-circuit voltage uk [%]: | 7 |
| Secondary voltage 1 from/to [v]: | 24 |
