The device for making indications in metric units (kWh) is used to directly measure active power in a single-phase system and register the electricity consumed with the possibility of remote reading of registers of the indicator group through the wired network of the RS-485 standard. A special electronic system under the influence of the flowing current and applied voltage generates pulses in an amount proportional to the electricity consumed. The energy consumption in the phase is indicated by the flashing of the LED. The number of pulses is converted into the energy consumed, and its value is indicated by the LCD display (5+1). Power supply: 230V~, 50Hz, base current: 5A, max. current: 80A, pulse frequency: 1000imp/kWh, measurement accuracy: class 1, mounting on a 35 mm rail. For remote reading of the electricity indication, the RS-485 port is used.

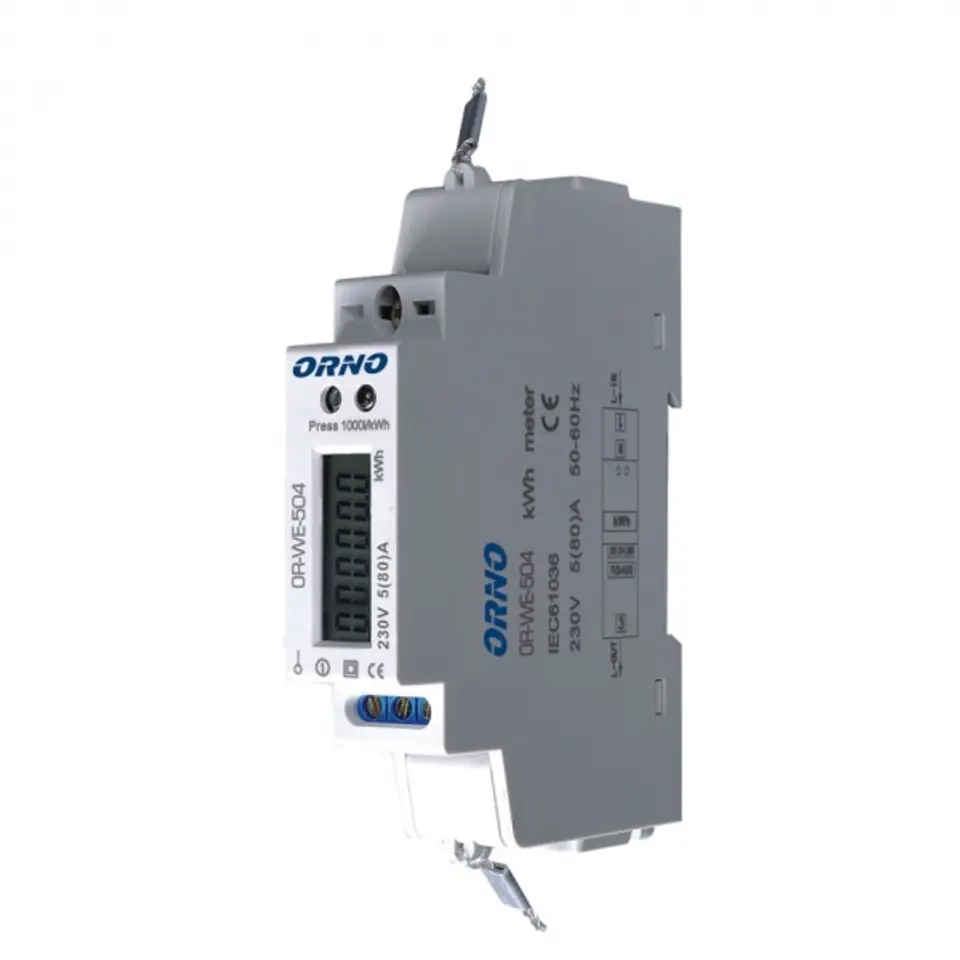

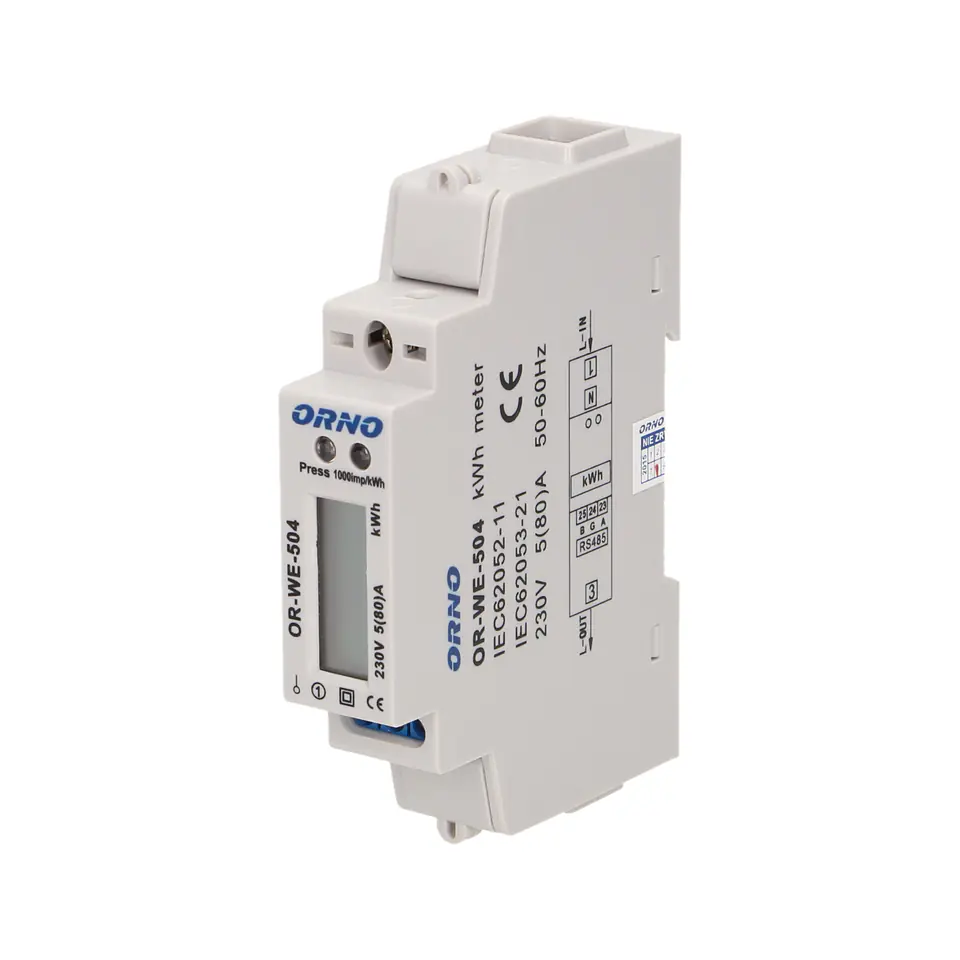

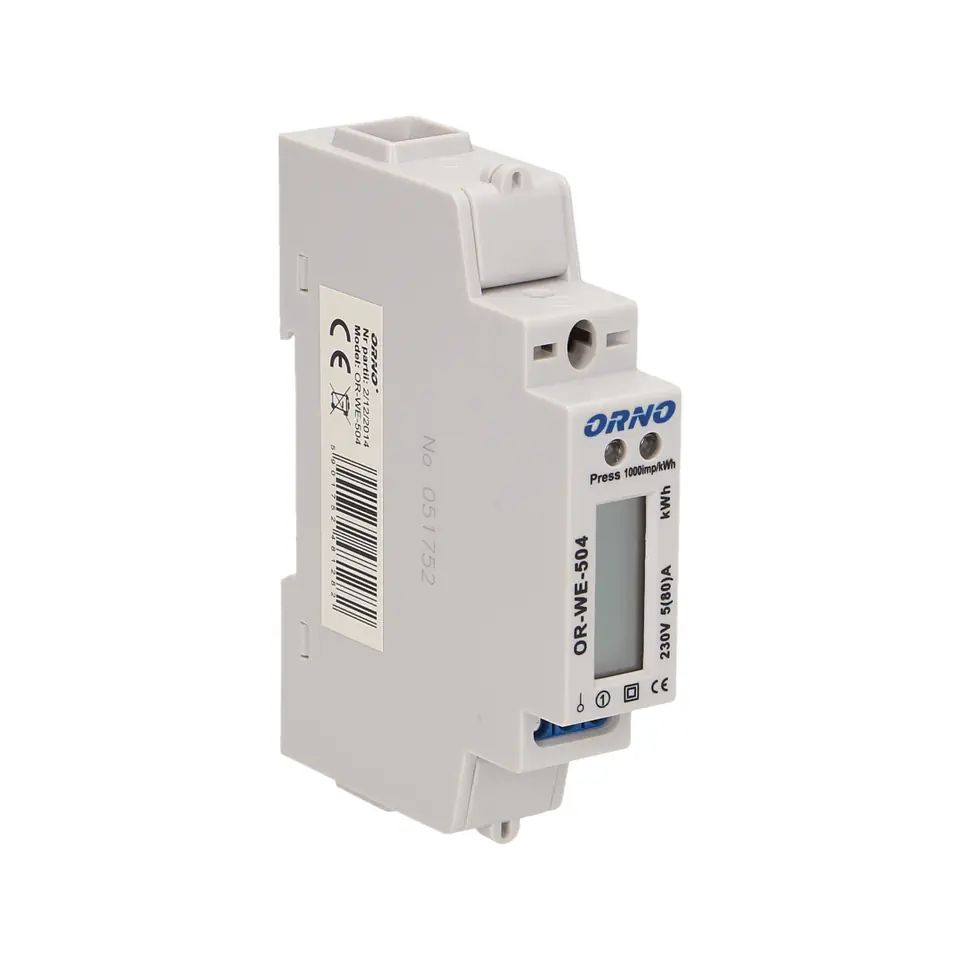

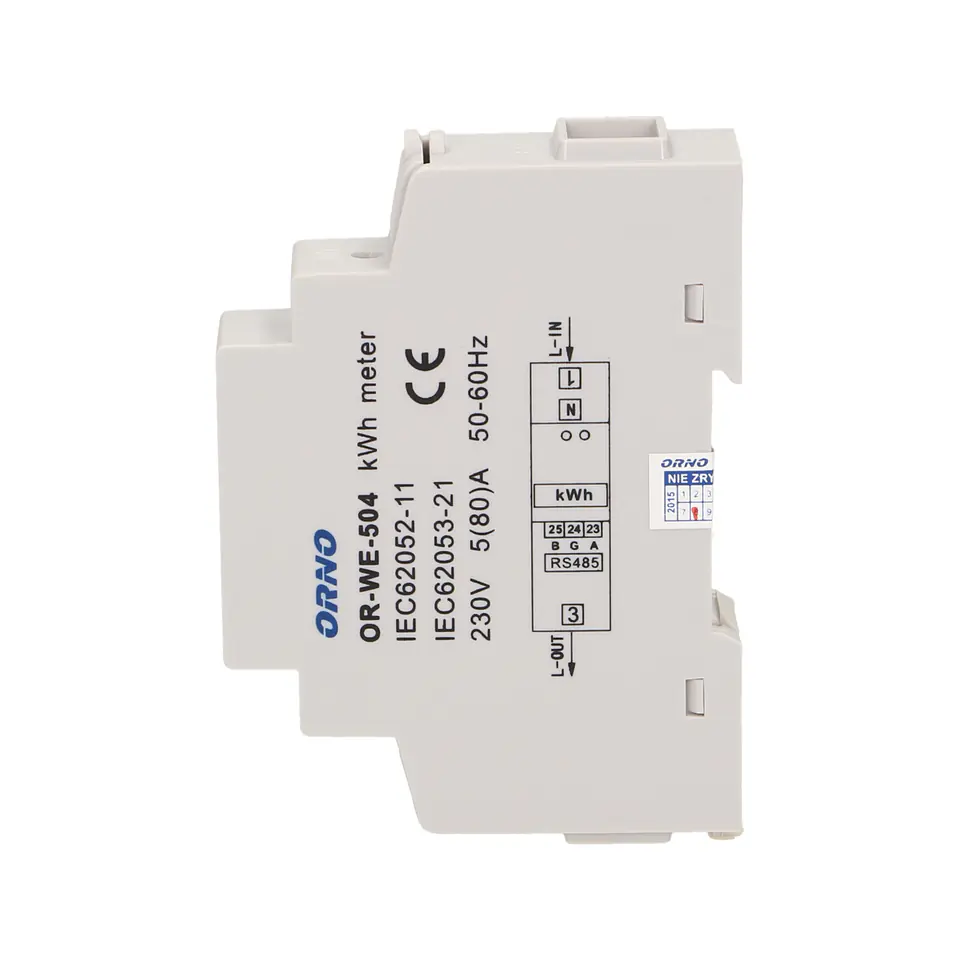

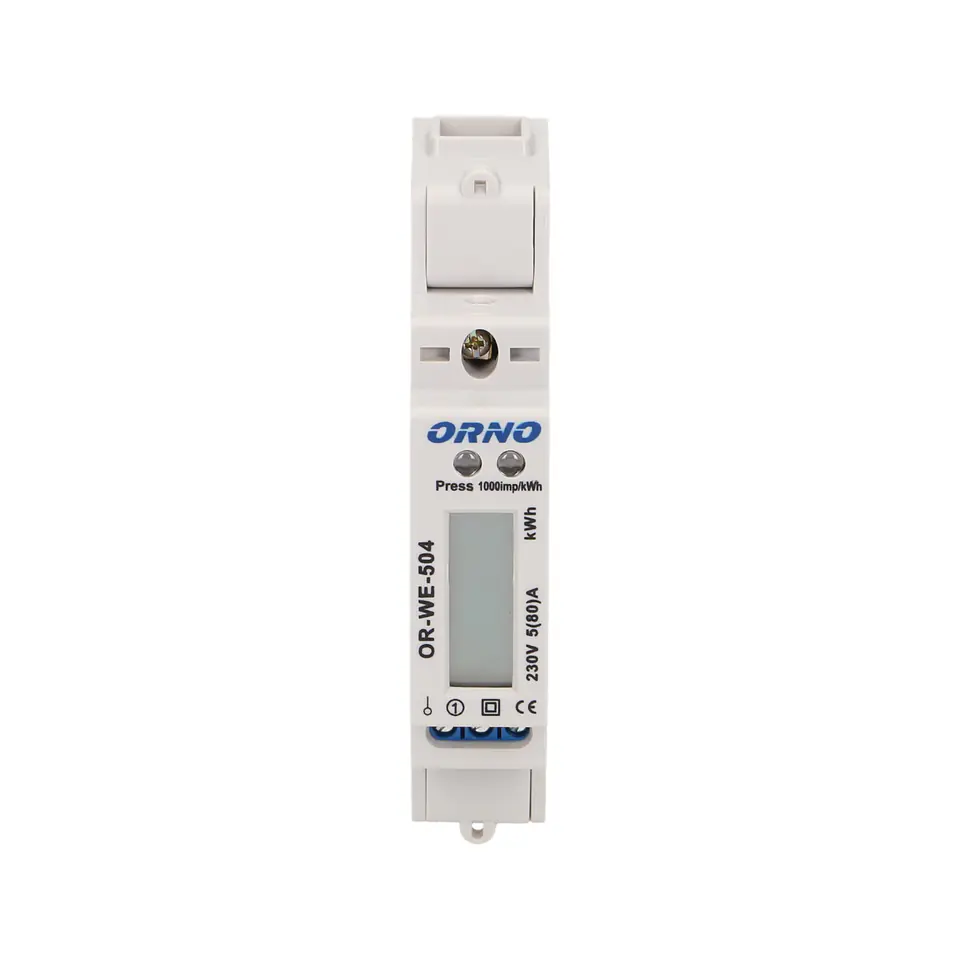

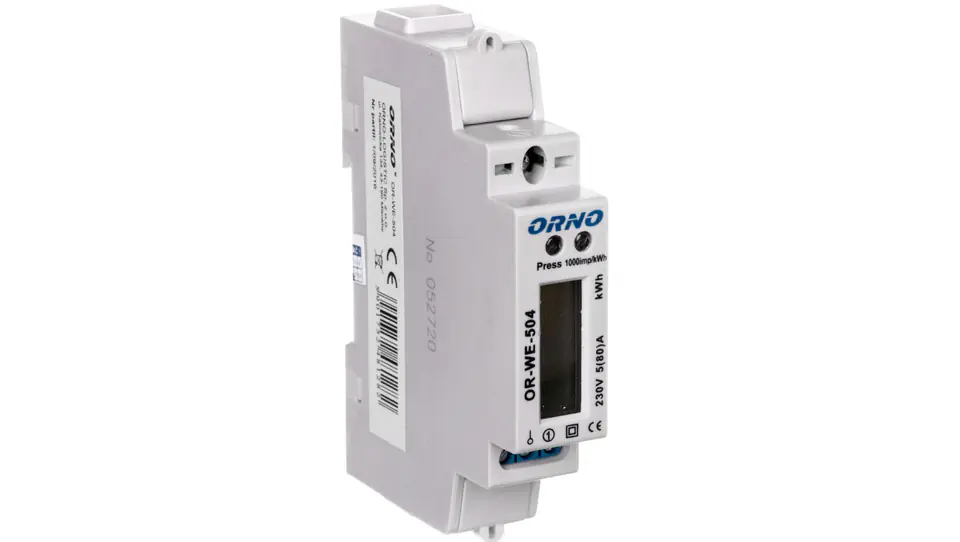

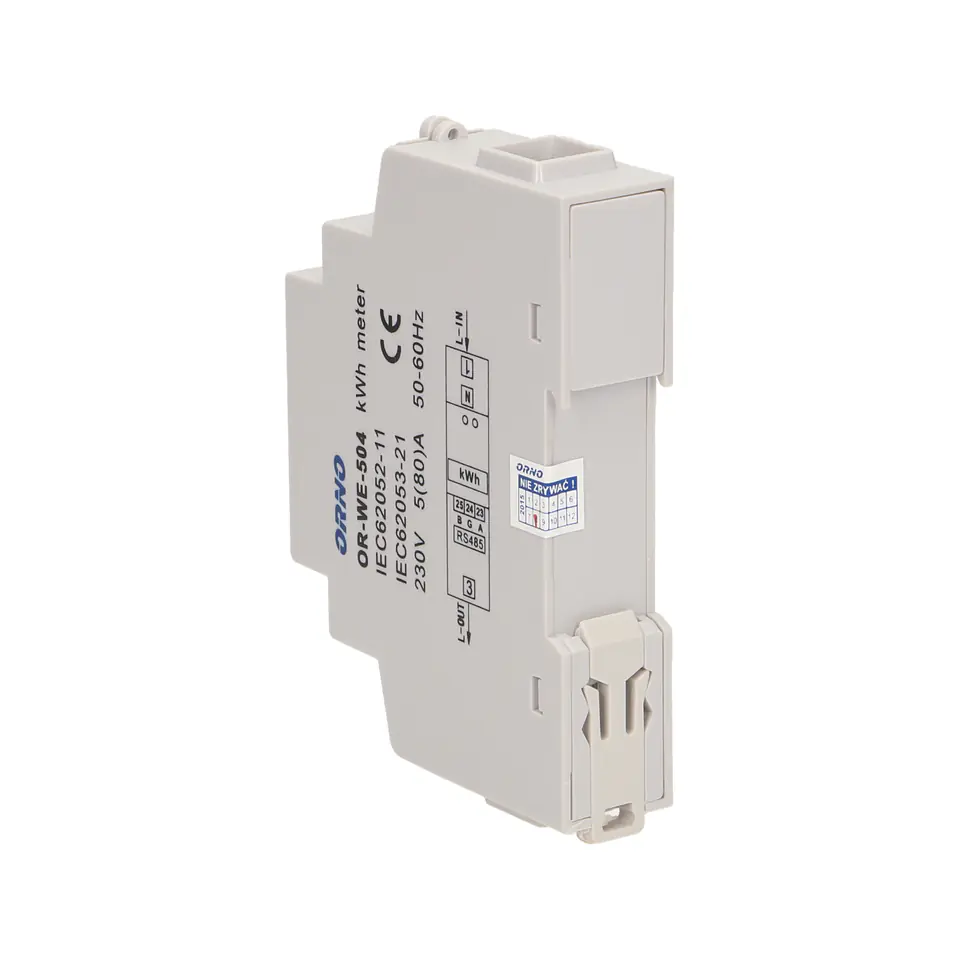

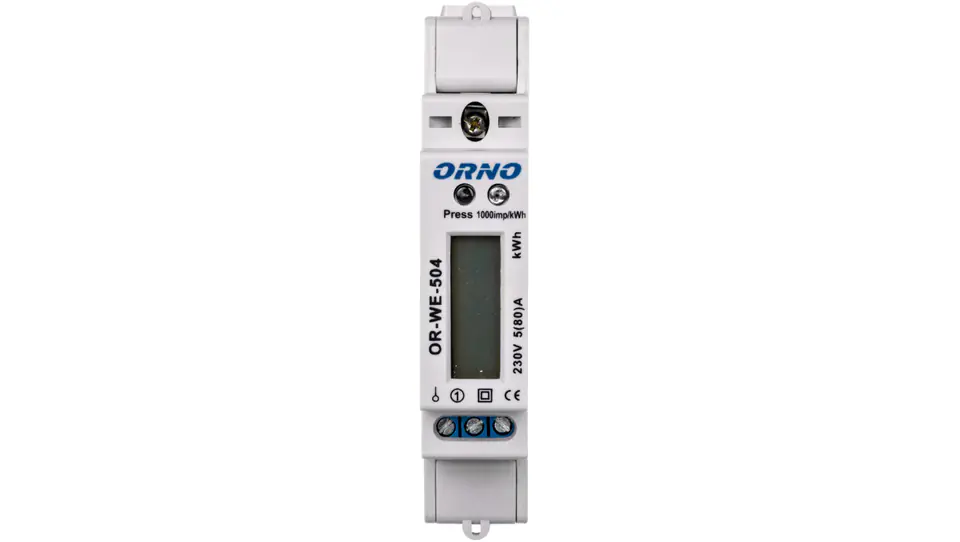

1-phase power consumption indicator, 80A, RS-485 port, 1 module, DIN TH-35mm
€34.45
Shipping from warehouse: A2
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Orno
- Product code:
- OR-WE-504 / 5901752481282
Share this product:
Specification
| Accuracy class: | 1 |
|---|---|
| How to connect the meter: | Direct connection |
| Model: | Two-wire counter |
| Modular version: | Yes |
| Mounting method: | Built-in |
| Number of meter tariffs: | Single tariff |
| Number of pulses per unit of energy [imp/kv ah]: | 1000 |
| Rated current in cooperation with current converter: | Lack |
| Rated operating frequency [hz] from: | 50 |
| Rated operating frequency [hz] up to: | 60 |
| Rated voltage [v]: | 230 |
| With electronic pulse generator: | Yes |
| With pulse output: | No |
