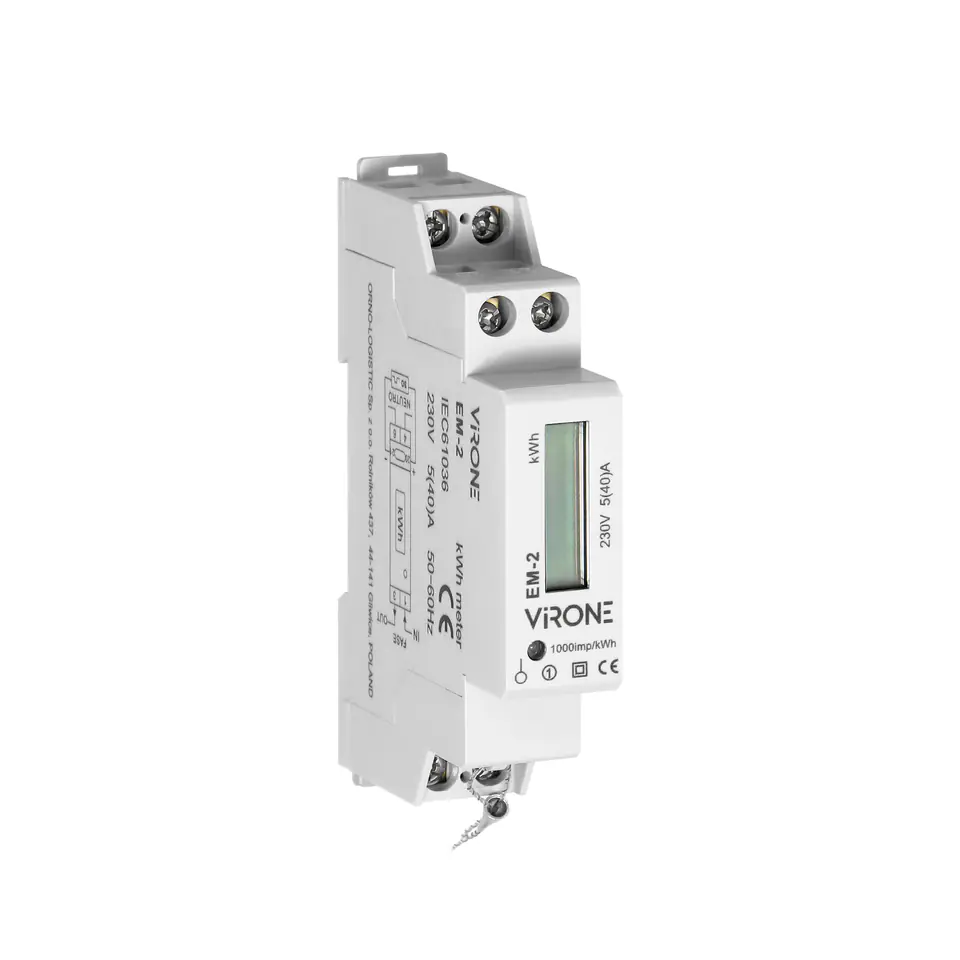

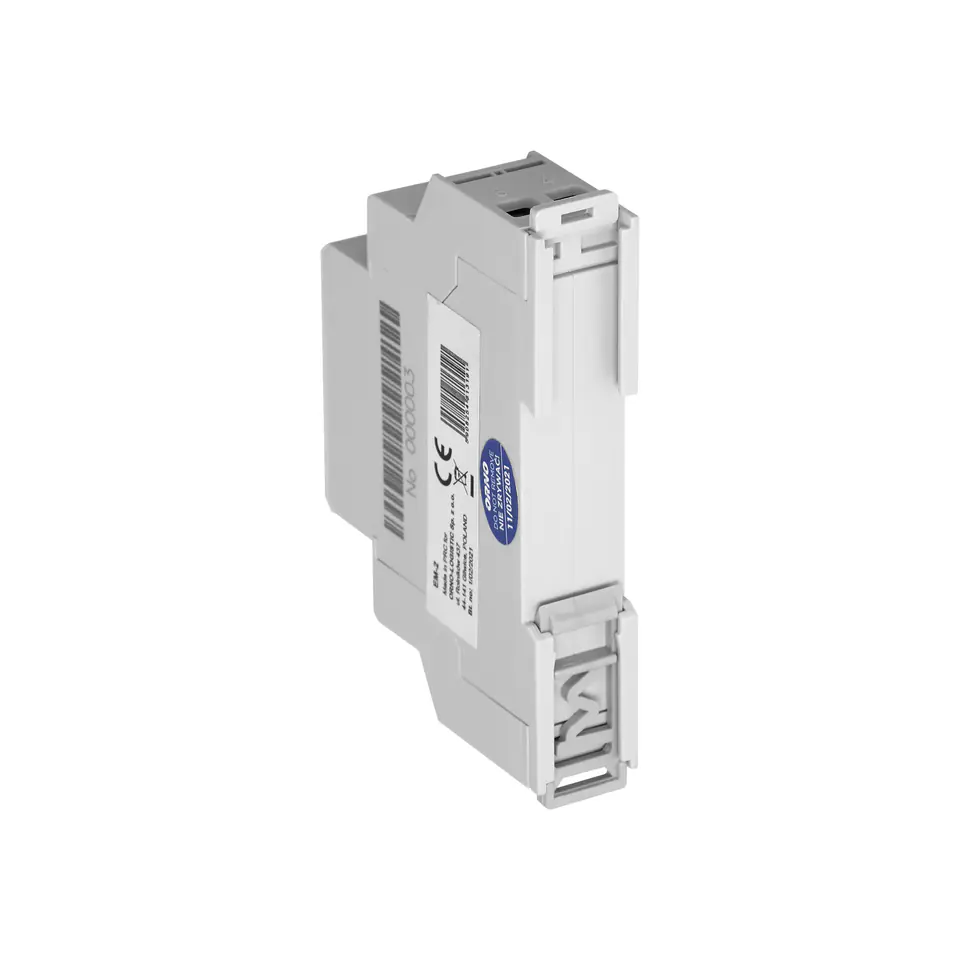

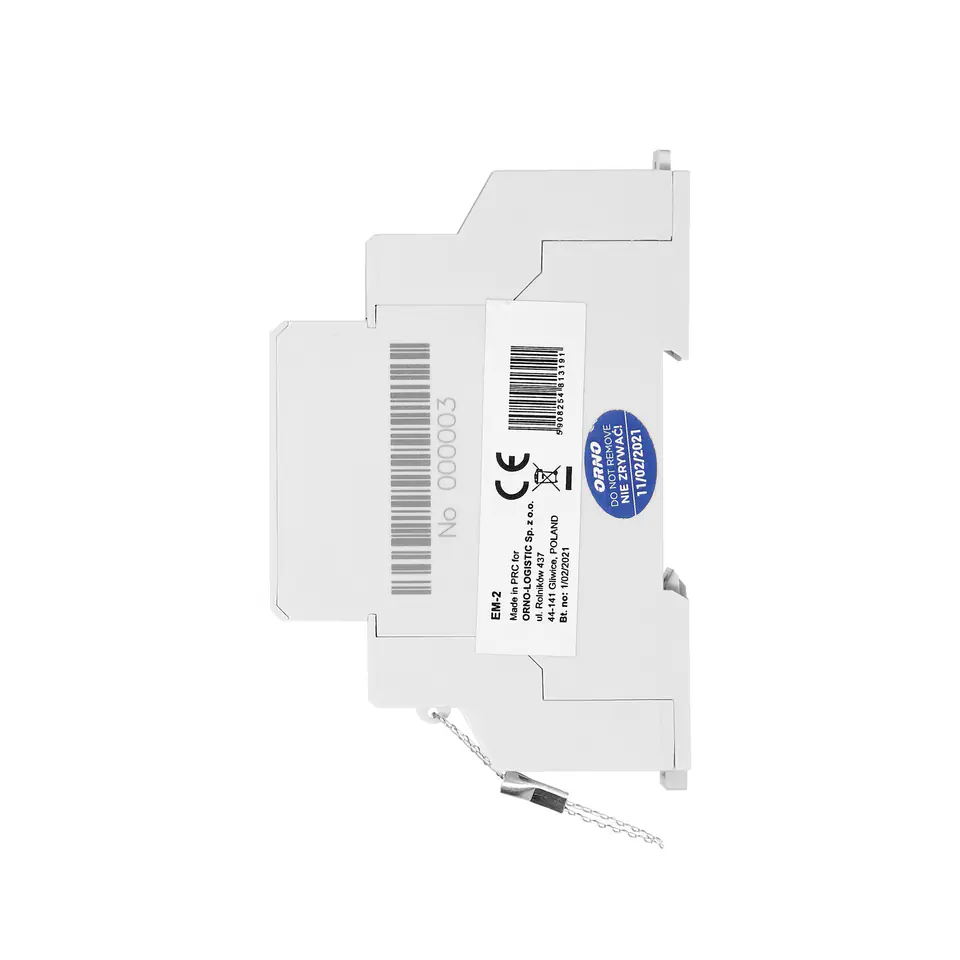

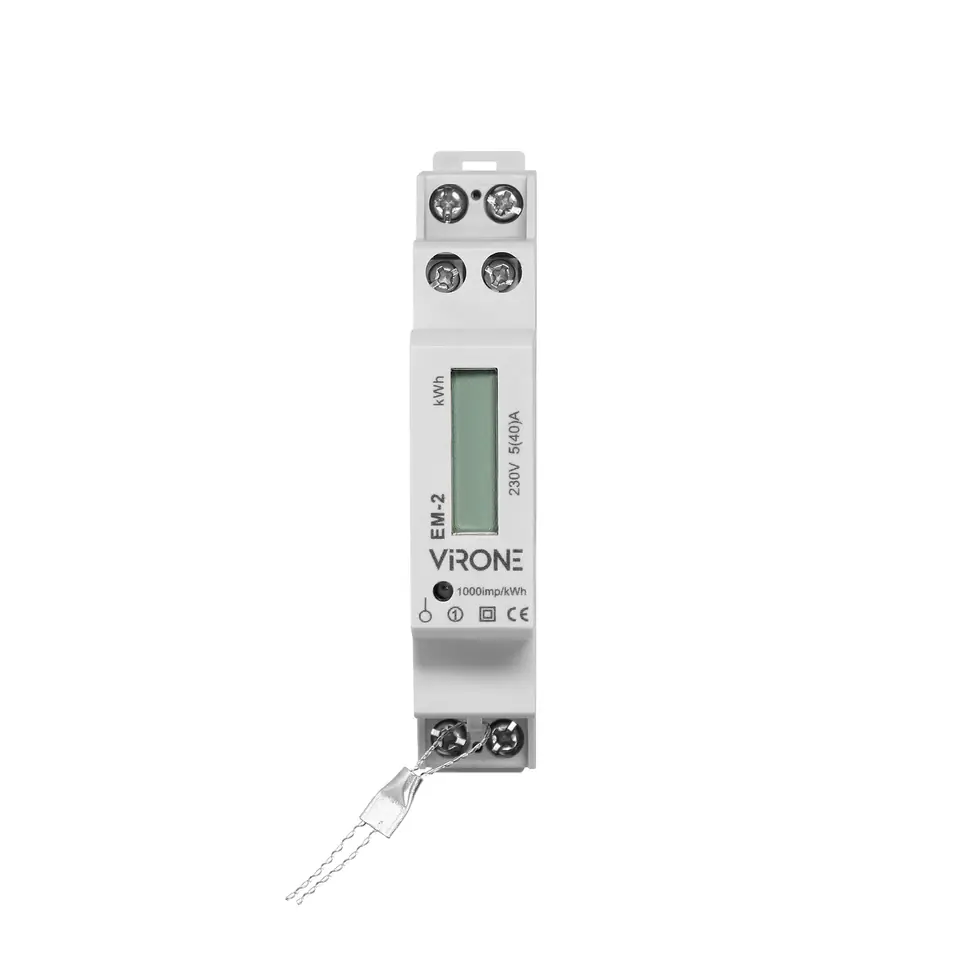

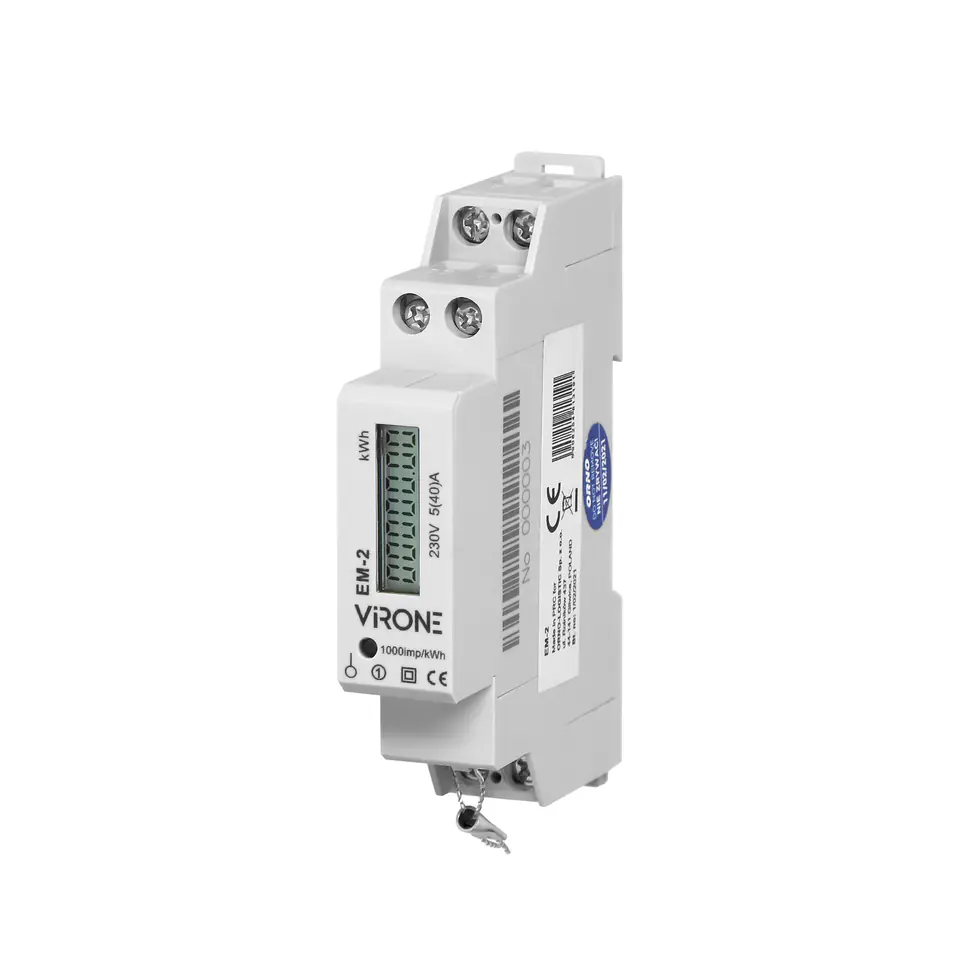

The device for making indications in metric units (kWh), is used to directly measure active power in a single-phase system. A special electronic system under the influence of the flowing current and applied voltage generates pulses in an amount proportional to the electricity consumed. The energy consumption in the phase is indicated by the flashing of the LED. The number of pulses is converted into the energy consumed, and its value is indicated by the LCD display (5+2). Power supply: 230V~, 50Hz, base current: 5A, max. current: 40A, min. current: 0.25A, pulse frequency: 1000 imp/kWh, accuracy class B, housing with a width of one module, mounting on a DIN rail TH-35 mm, pulse output: power supply 12~27V, current ?27mA, pulse = 90ms.
1-phase power consumption indicator, 40A, pulse output, 1 module, DIN TH-35mm
€16.63
Shipping from warehouse: A2
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Orno
- Product code:
- 5908254813191
Share this product:
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
