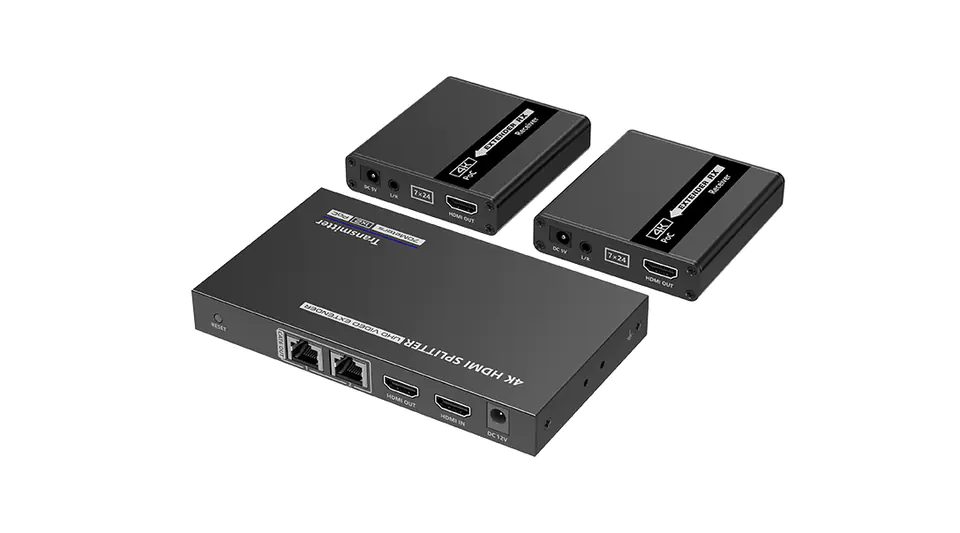

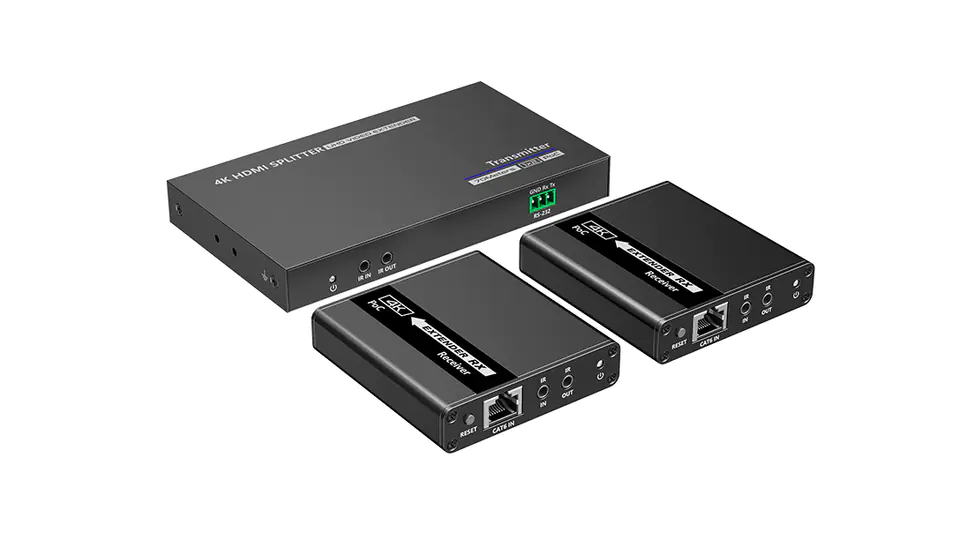

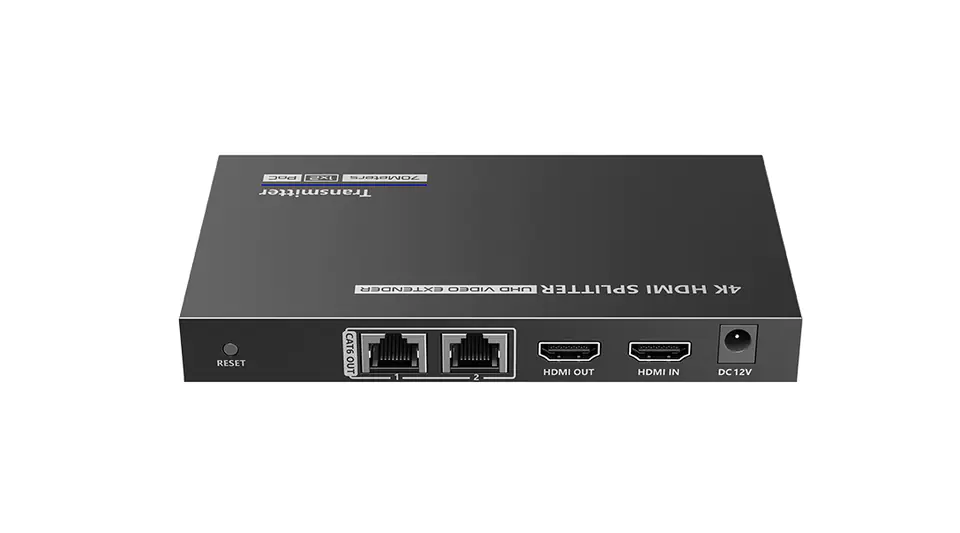

HDMI splitter with CAT6 4K@30Hz HDR

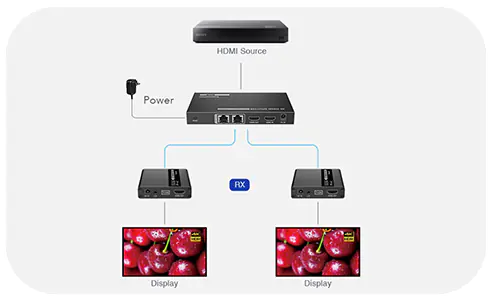

HDMI 1/2 splitter for zero-latency 4K@30Hz transmission over distances of up to 40 meters (70 meters in 1080p@60Hz quality). The transmitter is equipped with an additional HDMI via and RS232 port allowing for external management of the device. The splitter is ideal for outdoor advertising, studios, classrooms, etc.
- HDMI1.4, HDCP1.4 compatible
- Supported 4K@30Hz 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576p@50Hz, 576i@50Hz, 480p@50Hz, 480i@50Hz
- Audio formats: PCM, LPCM, DTS-HD, DTS-Audio

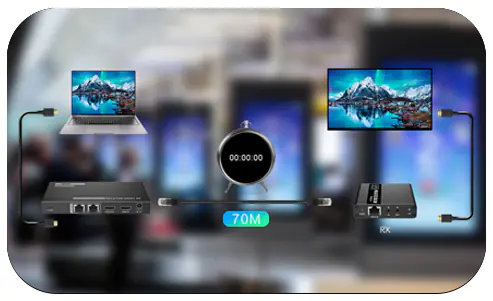

- Transmission distance: 1080p to 70m, 4K@30Hz to 40m
- IR Passback: 2-way IR (20-60kHz)

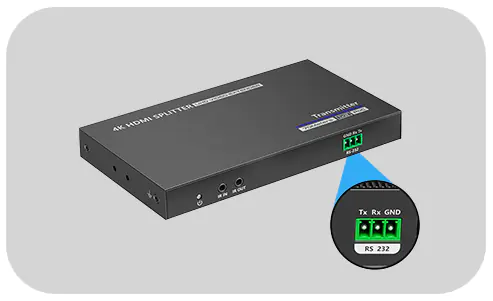

- RS-232: 3Pin: GND-RxD-TxD,
- Operating temperature: -20~+60st.
- Storage temperature: -30~+70st.
- Humidity: 0-90%RH
- Power supply: TX: DC12V/1A, RX: DC5V/1A
- Current consumption: TX<10W, RX<2.5W
- Housing: metal
- TX weight: 280h, RX 160g x2
- Dimensions: TX: 152 x 87 x 19mm, RX: 75 x 80 x 18mm
- Mode: 1 to 2
