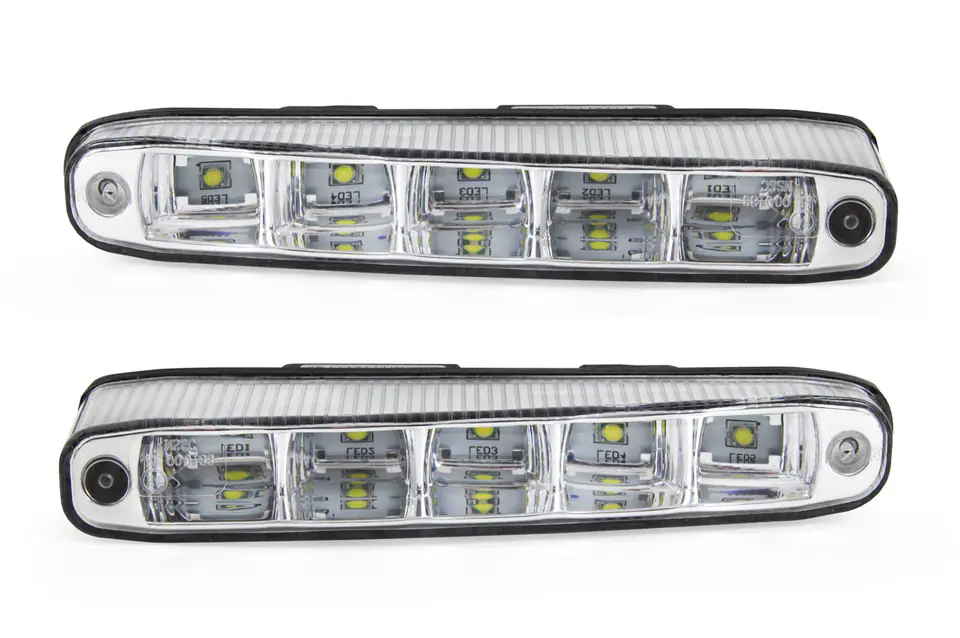

The NSSC 506HP is one of the first and most popular designs. Its construction significantly refers to the NSSC 507HP model, with the difference that it is shorter and dedicated to the rounded surfaces of the bumper. This does not change the fact that it has also been used in cars with a flat bumper structure, thanks to the so-called "stepped headlight" construction. Here, too, we used SMD LEDs with a power of 1W with a large light surface, which emphasizes the perfectly diffused light, referring to the original DRL modules, fitted as standard in high-end cars. The currently offered model is available in the latest technological version, which definitely emphasizes its high quality, guaranteeing the recognition of customers.
Specification:
- 5 x High Power SMD LEDs 1W (per lamp)
- Dimensions (width / height / depth) 162mm x 25mm x 29/52mm
- Motherboard Made of Aluminum
- Total power consumption: 11.52W
- Voltage 12 / 24 * V (* on request)
- RL00, E4 approval. Approved on the basis of RCE87
- Heat dissipation heatsink Yes
- Waterproof Yes
- Mounting bracket Yes
- Lamp pressure adjustable breather Yes
- Auto switch included Yes
- Machine Joints Yes
- Stair reflector (angled mountable)
- Warranty: Yes
- PE front glass (safety and compliant with EU requirements)
