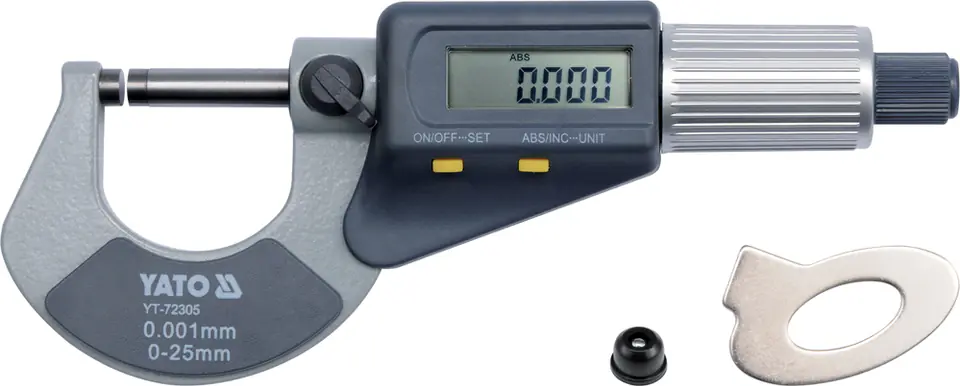

0-25MM MICROMETER WITH DIGITAL DISPLAY

Technical Specifications

Manufacturer: Yato
Manufacturer's code: 72305
Material: carbon steel|aluminum| PVC
Operating Temperature Range: 5~40 °C
Storage Temperature: -20~+60°C
Power supply: battery
Battery Type: 1.55V SR44
Metric scale: Yes
Inch scale: Yes
Measuring range: 0-25mm
Type of readout: electronic
Display Type: LCD Liquid Crystal
Power consumption during standby: ? 35 μA
Measuring force: 5-10 N



Purpose / Application

For precise measurements and easy reading from 0 to 25 mm.

Preparation for work:
- Clean the measuring surfaces and guide. For this purpose, use a cotton cloth. Do not use solvents or acids.
- Check the zero position for this purpose, contact the measuring surfaces by turning only with the friction clutch knob. Then press and hold the button labeled ON/OFF•••SET for about 2 seconds until the indication resets.
- Check that all buttons, switches and display are working properly.


**

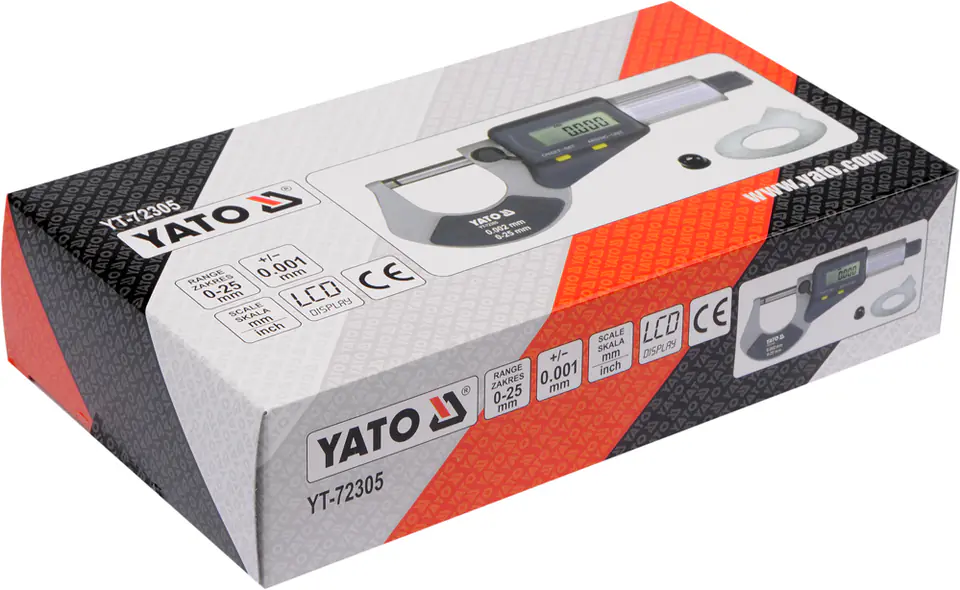

Illustrative photos
